Executes a subroutine.



POST: api/v1/<apiresource>/Subroutine/{name}

<apiresource>ApiResource name. e.g. apidemo.

{name} Parameter

Example: api/v1/apidemo/ Subroutine /SUB.DEMOLINKAR/

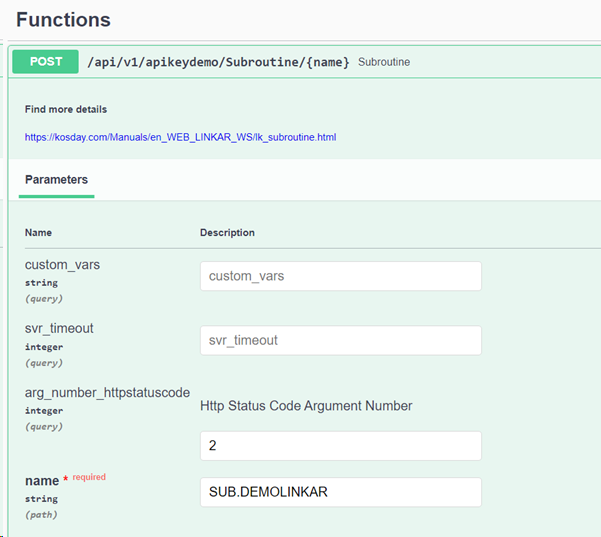

Parameters

custom_vars

string

This is a free text field to send in the transaction. If not empty, subroutine SUB.LK.MAIN.CONTROL.CUSTOM will be called. Add custom code to that subroutine to define special behaviours for some or all transactions.

svr_timeout

integer

This is the maximum time in seconds that the client will wait for a response. Use 0 for no timeout.

arg_number_httpstatuscode

integer

Optional. It is the argument of the subroutine with the HTTS Error Code to be returned to the client More info in HTTP status code

name (*)

string

Name of BASIC subroutine to execute.

(*) Mandatory







Request Body

The following examples used SUB.DEMOLINKAR subroutine. This subroutine has 3 arguments.

The first one is the number of waiting seconds before the subroutine returns control.

The second argument is a text that will be converted to uppercase and be returned as a result in the third argument when the subroutine terminates.

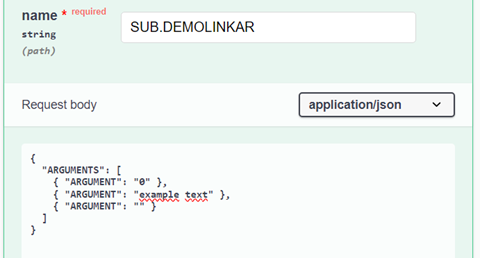

application/json

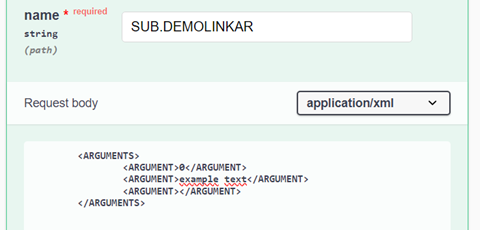

application/xml

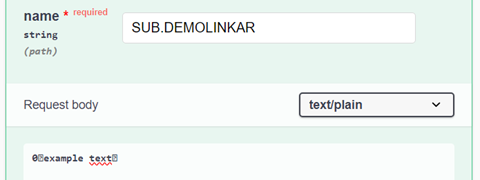

text/plain







Responses

On all kind of responses, an ERROR tag will list all possible errors during execution of the operation. This tag includes CODE tag with the error codes and MESSAGE tag with messages of each error.

In responses of type "text/plain" (LkString MV), error codes and messages are separated by multivalue marks.

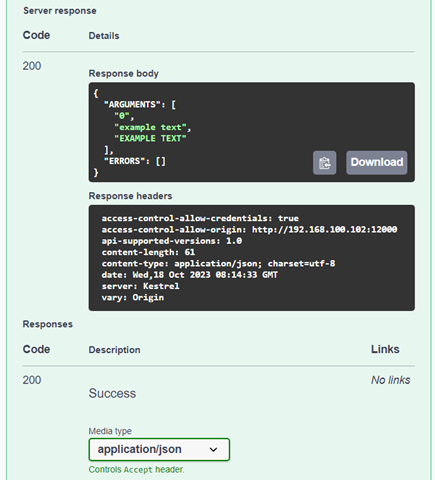

application/json

The image below shows an example of the result of executing the operation.

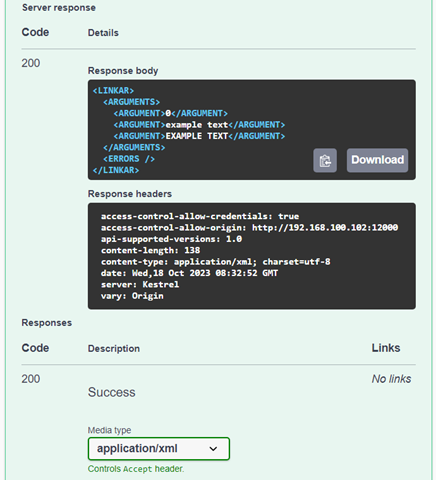

application/xml

The image below shows an example of the result of executing the operation.

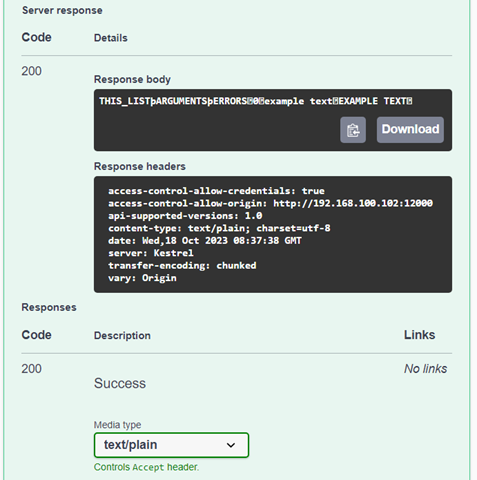

text/plain

The image below shows an example of the result of executing the operation.
